ACP Sheet Stripper

ACP Sheet Stripping Machine

Introduction

The ACP Sheet Stripping Machine, also known as the Aluminium Composite Panel (ACP) Recycling Machine, is designed for the efficient recycling of aluminium and plastic layers from composite panels. This machine plays a crucial role in sustainable manufacturing by reducing waste and promoting resource reuse, contributing to environmental sustainability.

Technical Details

• Model: ACP Sheet Stripper / Sandwich Panel Peeling Cutting Machine
• Capacity: 400-1000 kg/hr
• Input Sheet Width: 1.2 meters
• Power Requirements: 3 HP, 440V, 3-phase
• Control System: Variable Frequency Drive (VFD) controlled, allowing fine-tuned speed control and energy efficiency.
• Components:
  • Peeling Mechanism: Efficiently separates the aluminium and plastic layers.
  • Discharging Mechanism: Facilitates continuous output of separated sheets.
  • Rollers & Sprockets: Ensures smooth movement of material through the machine.
  • Motor & Gearbox: Powered by a belt system to maintain stable operation.

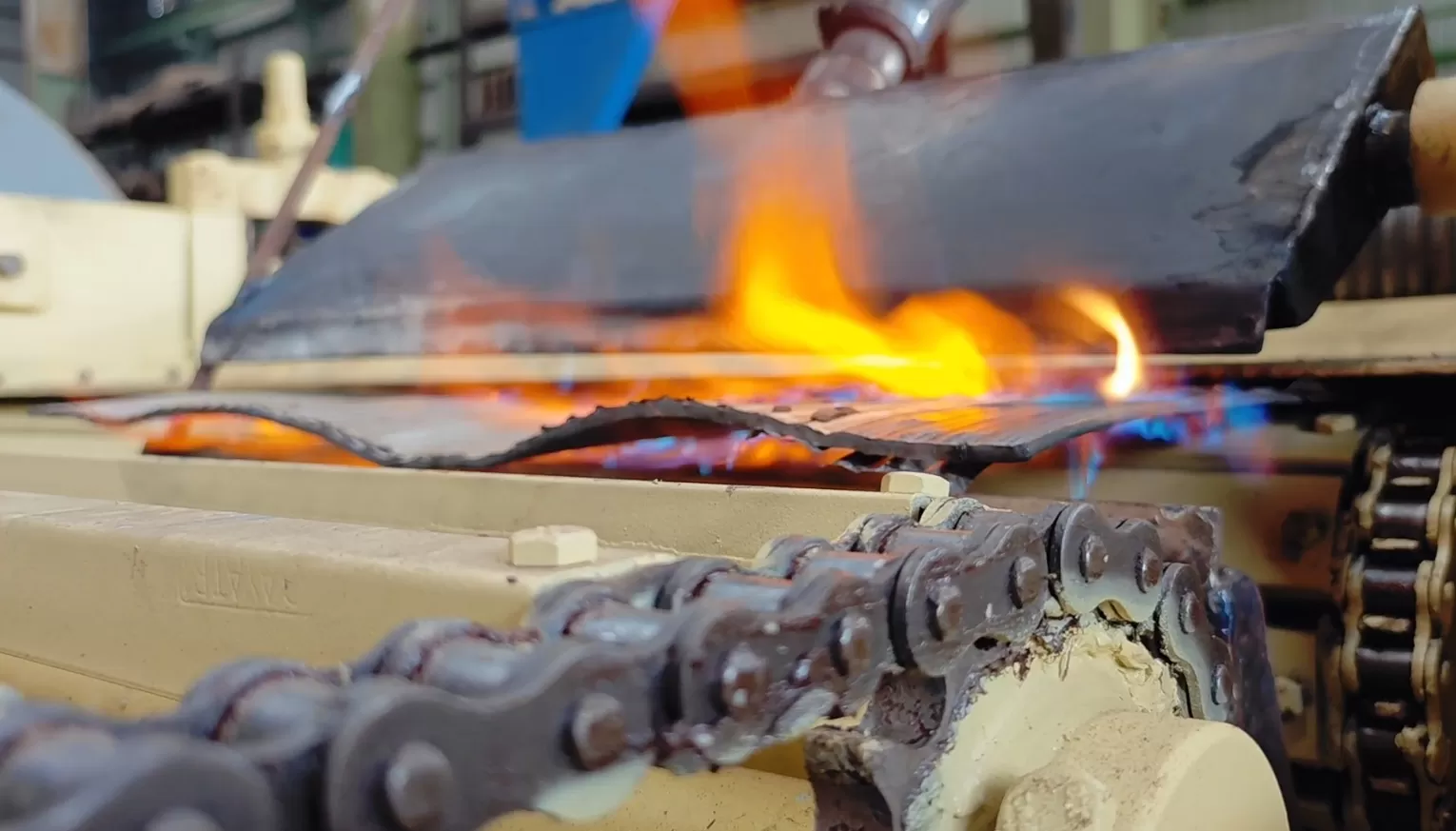

  • Heating Mechanism: Heats the panel to a preset temperature to loosen layers for separation.
  • Dry Physical Separation: No use of water or chemicals, reducing pollution risks.

Uses

• Recycling Centres: Efficiently strips aluminium and plastic layers from composite panels for recycling.
• Manufacturing Facilities: Suitable for industries involved in processing and recycling aluminium composite panels.
• Sustainable Manufacturing: Supports eco-friendly operations by providing a means for recycling ACP waste and minimizing landfill contributions.

Advantages

• Eco-Friendly: Low noise and no water or chemical use, contributing to minimal environmental pollution.
• High Efficiency: Capable of processing up to 1000 kg of material per hour, ensuring fast and effective separation of aluminium and plastic layers.
• Low Maintenance: Designed for simple operation with minimal wear and tear, thanks to the dry physical separation process.
• Energy Efficiency: VFD-controlled motor allows for precise speed control and energy-efficient operation.
• Contribution to Sustainability: Supports environmental sustainability by promoting recycling, reducing waste, and reusing resources.
